GIDPC DOT
Application
- GI DPC DOT helps you control your pumps.
Features
- Common controller for rated current up to 15 A Single Phase. Common panel for applications like water supply, drainage & pressure boosting. One touch calibration of pump parameters. Overload & Pump stalled protection. Under current protection for sensor-less dry running.
- LCD Screen displays Voltage & Current along with run status and faults as well. Choice of connecting probes / oat for level control and pressure switch for pressure control.

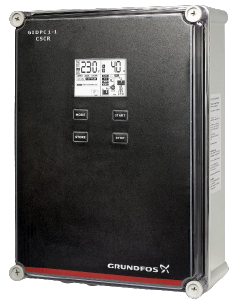

GIDPC SINGLE PHASE
Application
- DPC CSCR is very useful in water and wastewater applications, be it water transfer, tank filling, tank emptying or even pressure boosting in Hydro-pneu- matic applications. It is ideal choice in residential, industrial or institutional segments where water and energy conservation is of utmost importance.
Features
- LCD screen displays pump running information Over load protection Motor stalled protection Dry run protection without installing a oat switch Under voltage protection Over voltage protection Transient surge protection Memory function when power off & power recovery Visual & audio alarm for fault prompt DIP switch settings to make it suitable for different applications like water supply, drainage or pressure boosting Auto/Manual switch Liquid level probes/ oats (in case of fully automatic models) for clear water Total run hours RS 485 Modbus communication

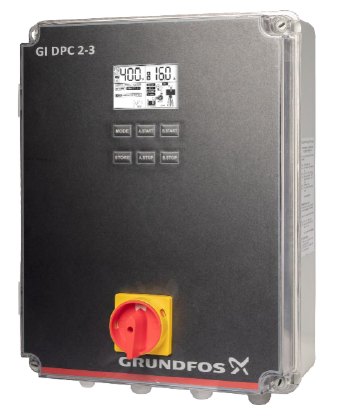

GIDPC THREE PHASE
Application
- Typical applications: Water supply Irrigation Sewage Booster sets Rainwater reuse Stormwater
Features
- Built-in function switch for:
- Drainage by liquid level control through float switches
- Boosting water supply by pressure control through pressure switch and tank
- Transfer of water by liquid level control through float switches Dry run protection without float switches Auto/ manual switch with screen lock in AUTO mode Dynamic LCD displaying for pump running status Protect the pump against many faults Push button calibration Pump accumulative run time Last five fault records RS485 communication (Modbus) Starts and stops the pump in accordance with liquid levels or pressure settings Pump shaft anti rust features

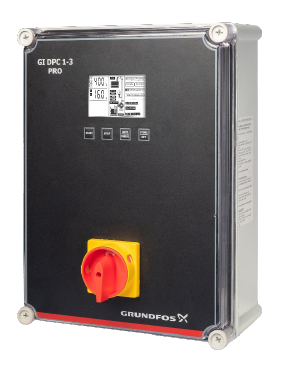

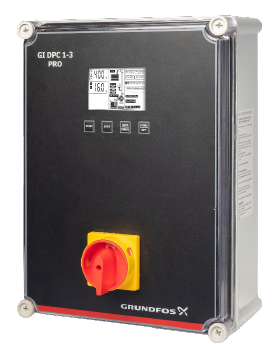

GIDPC Pro
Application
- Storm water
- Sewage
- Booster sets
- Rainwater reuse
- Irrigation
- Water supply
Features
- Built in DIP switch for multi auto mode applications in the same panel
- Drainage via Float switch
- Water supply and Water transfer via Float switch
- Pressure Booster via Pressure Switch
- Dry run protection without Float switch
- Auto/manual switch with screen lock in AUTO mode
- Dynamic LCD screen for pump running and tank/pit level status
- Single Phasing Prevention (Incoming & Outgoing)
- Reverse Phasing protection
- Phase Asymmetry protection
- Protect the pump against various faults
- One touch calibration for all parameter settings
- Ease of entering set points from HMI and LCD screen
- Pump accumulative running time
- Last five fault records
- RS 485 Communication (MODBUS RTU Protocol)
- Start and stop the pump based on feedback received from liquid level or pressure level settings
- Pump shaft anti rust protection
DPC AIO
Application
- Storm water
- Sewage
- Booster sets
- Rainwater reuse • Irrigation
- Water supply
Features
- Built in DIP switch for multi auto mode applications in the same panel
- Drainage via Float switch
- Water supply and Water transfer via Float switch
- Pressure Booster via Pressure Switch
- Dry run protection without Float switch
- Auto/manual switch with screen lock in AUTO mode
- Dynamic LCD screen for pump running and tank/pit level status
- Single Phasing Prevention (Incoming & Outgoing)
- Reverse Phasing protection
- Phase Asymmetry protection
- Protect the pump against various faults
- One touch calibration for all parameter settings
- Ease of entering set points from HMI and LCD screen
- Pump accumulative running time
- Last five fault records
- RS 485 Communication (MODBUS RTU Protocol)
- Start and stop the pump based on feedback received from liquid level or pressure level settings
- Pump shaft anti rust protection
