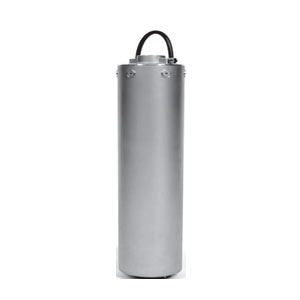

Complete SS Pressure Booster Package (VL Series)
Franklin Electric - VN Series Pump for 150mm (6”) wells and larger.
Application :
- Water distribution
- Pressure boosting
- Water supply from wells or first collecting tanks
- Rainwater collection
- Irrigation / Gardening / Sprinklers
- Dewatering
- Wash down unit
- Fountains and water games
- Specific applications to cape problems of noise
- Specific application to cape problems of space-saving
Features :
- Full Stainless Steel compact and solid structure
- Impellers and diffusers are made of stainless steel in order to achieve durability, superior efficiency and the highest performances
- Double mechanical seal separated by an oil* chamber for maximum motor protection
- *In compliance with FDA - Food, Drug Administration - and the annex to G.U. no. 104 of 20/04/73 for oils in contact with food stuffs
- Plug-in type power cable and level control (foater) for easy replacement
- External capacitor easily accessible ( Single-phase only)
- Extremely silent pump thanks to inside motor, cooled by the pump liquid itself
- Pump fittined with flanged connections to allow for easy installation in narrow spaces or more simply, in line with the pipeline
Specifications :
- Capacities up to 14 m3/hr and heads up to 11 Bar
- Discharge outlet 1”1/4 Rp
- Maximum working pressure 15 Bar
- Maximum immersion depth 20 m
- Liquid temperature range -5°C to 40°C
- Continuous operation either in vertical or horizontal position
- Motor range: 0,55kW to 3kW
- Asynchronous, Class F insulation, IP 68 protection
- 1,5 m of power cable type H07RN F is supplied with the standard version
