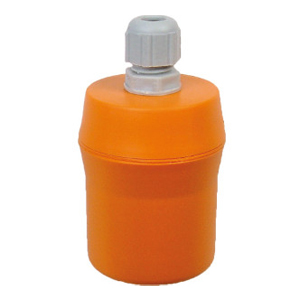

Cable weight

The cable weight 40 05 weighs approx. 160g (0.35 lbs) and fits all Level Controllers M2 and M3. It can not be used with IECEx devices.
The cable weight has to be fitted on the cable before the installation of the controller. If required the M3 can also be supplied with a pre-mounted weight.

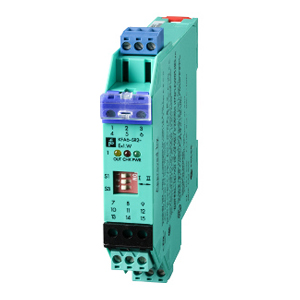

Intrinsically safe barrier

This 1-channel intrinsic safety barrier relay is an important safety measure for intrinsically safe electric circuits. To ensure the safe disconnection of all intrinsically safe circuits in EX zones 0 and 1 (Cl.1 Div.1), a safety barrier relay is strictly required when installing EX-certified level controllers (EN 60079-11,14, 25 and EN 61241-11). One relay is required for each switching point (number of controllers in EX zone). Dual-channel barrier relays are available upon request.

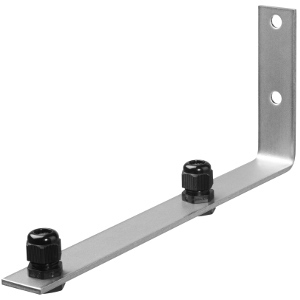

Cable support bracket

The stainless steel support bracket is mounted on the wall. With the included M16 cable glands, one or two level controllers can be suspended freely at exactly the required height. Comes with screws and anchors (M 6).

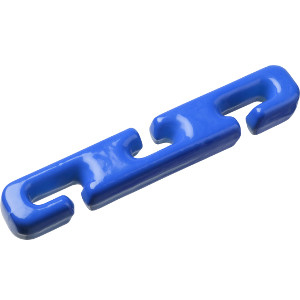

Cable weight ( Art.-No. 41 03)

The cable weight 41 03 weighs approximately 700g (1.5 lb) and can be used on all level controllers. The weight can be retrofitted on already installed controllers.
